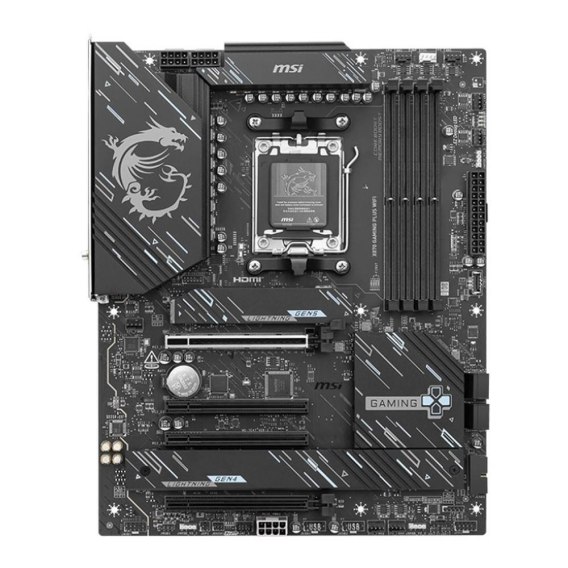

Płyta MSI X870 GAMING PLUS WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX
Symbol:
X870 GAMING PLUS WIFI
| Wpisz swój e-mail |
| Opinie | |
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 25 |
| Dostępność |
Brak towaru
|
| Waga | 0.15 kg |
| Kod kreskowy | |
| EAN | 4711377281201 |
| Zostaw telefon |
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format płyty: ATX
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci RAM: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, M2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,, maximum resolution of 4K 60Hz, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwiękowa: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16: 4
Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Wymiary [S x W] (mm): 243,84 x 304,8
Opakowanie: BOX
Wyposażenie dodatkowe: 2x SATA Cables, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1)
Informacje dodatkowe: Support for Windows 11 64-bit
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format płyty: ATX
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci RAM: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, M2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,, maximum resolution of 4K 60Hz, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwiękowa: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16: 4
Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Wymiary [S x W] (mm): 243,84 x 304,8
Opakowanie: BOX
Wyposażenie dodatkowe: 2x SATA Cables, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1)
Informacje dodatkowe: Support for Windows 11 64-bit
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Wyposażenie dodatkowe:
1 to 2 EZ Conn-Cable (V1), 2x SATA Cables, Cable Sticker, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, EZ Wi-Fi antenna, Quick Installation Guide
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Format płyty:
ATX
Wymiary [S x W] (mm):
243,84 x 304,8
Maksymalna wielkość pamięci:
256 GB
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Chipset płyty głównej:
AMD X870
Standard pamięci:
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
Uwagi do procesora:
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
- 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz, Ryzen™ 9000 Series Processors max. overclocking frequency:
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), M2_1 slot:, supports 22110/2280 devices, supports 2280/2260 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Gniazda karty graficznej:
HDMI, USB Type-C
Uwagi do karty graficznej:
Graphics specifications may vary depending on the CPU installed., maximum resolution of 4K 60Hz, Support HDMI™ 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,
Zintegrowana karta dźwiękowa:
Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękowej:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16:
4
Uwagi do złącz PCI:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors), PCI_E1 slot:
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
8
Porty USB na panelu tylnym:
4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Inne porty i gniazda:
2x Antenna Ports, 2x Front Panel, 3x Addressable V2 RGB LED connector, 4x EZ Debug LED, 6x System Fan, Combo Fan (Pump_Sys Fan), CPU Fan, EZ Conn-header (JAF_1), Gniazdo modułu TPM, RGB LED connector, Tuning Controller Connector, Złącze czujnika otwarcia obudowy
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
6GHz band support may depend on every country's regulations and Wi-Fi 7, Bluetooth 5.4 will be ready in Windows 11 version 24H2, Supports Bluetooth® 5.4, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details, Wi-Fi 7, will be ready in Windows 11 version 24H2
Maksymalna ilość portów USB 4.0:
1
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
